Dimensions and Sizing
| Divider Height |
 |
 |
 |
 |
 |
||||
| D0 Base: 2" Divider Height: 3/4" Total Height with: 1" Parsley-1 3/4" 2" parsley-2 1/2" |
D1 Base: 2" Divider Height: 1 1/2" Total Height with: 1" Parsley-2 1/2" 2" parsley-3 1/4" |
D2 Base: 2" Divider Height: 2 1/2" Total Height with: 1" Parsley-3 1/2" 2" parsley-4 1/4" |
D3 Base: 2" Divider Height: 3 1/2" Total Height with: 1" Parsley-4 1/2" 2" parsley-5 1/4" |

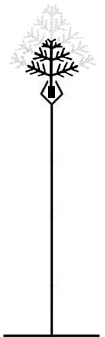

D5 Base: 2" Divider Height: 5 1/2 " Total Height with: 1" Parsley-6 1/2" 2" parsley-7 1/4" |
Curved Divider Length
 |

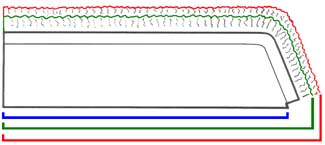

Length on curved dividers is the base length without parsley (blue). Overall length with C1 (1 1/2" parsley), add 1 3/4" to base length (green). Overall length with C2 (2 1/4" parsley), add 2 3/4" to base length (red). For divider height, use charts above. |
Divider Height (No groove, diamond/vinyl tip)
 |
 |
 |
 |
 |
| No Groove (DNG3) Base: 2" Height: 2 3/4" |
No Groove (DNG5) Base: 2" Height: 4 3/4" |
Diamond Tip Base: 2" Height: 3 1/4" |
Vinyl Tip (DV3) Base: 2" Height: 2 3/4" |
Vinyl Tip (DV5) Base: 2" Height: 4 3/4" |
